| Model |
PART NO. |
Measure Range |
Working V(V) |
weight(kg) |
llnstallationDimension |
| KK10010/KPFR-BN-0-190 |
3420000030 |
0-100% |
12月24日 |
0.1 |
kg)Φ52mm |

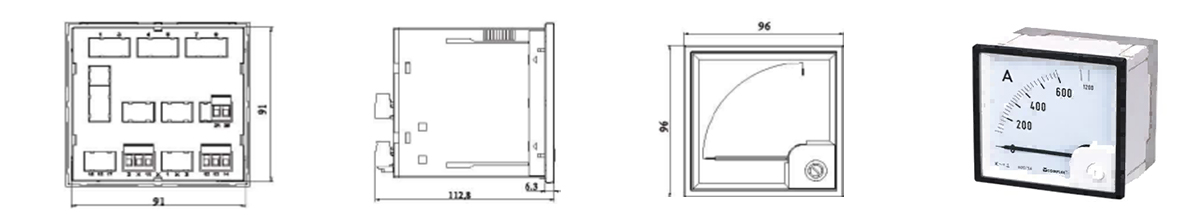

| Model |
PART NO. |
Measure Range |
LxWxH(mm） |
L (mm) |
W (mm) |
H (mm) |
Weight (Kg) |
| KLY-T48V 0~500V |
KLY-T48V |
0~500 |
96*96*112.8 |
112.8 |
96 |
96 |
0.2 |
| KLY-T72V 0~500V |
KLY-T72V |
0~500 |
96*96*112.8 |
112.8 |
96 |
96 |
0.2 |
| KLY-T96V 0~500V |
KLY-T96V |
0~500 |
96*96*112.8 |
112.8 |
96 |
96 |
0.2 |
| KLY-C72V 0~500V |
KLY-C72V |
0~500 |
96*96*112.8 |
112.8 |
96 |
96 |
0.2 |
| KLY-T96V 0~600V |
KLY-T96V |
0~600 |
96*96*112.8 |
112.8 |
96 |
96 |
0.2 |
| Model |
PART NO. |
Primary Current(A) |
Secondary Current(A) |
Rated Burden Class |
LxWxH (mm) |
Weight (Kg) |
| KLY-R22-50/5A 3.0级 |
3021900004 |
50 |
5 |
3 |
71*71*22 |
2 |
| KLY-R22100/5A 1.0级 |
3021900008 |
100 |
5 |
1 |
175*175*35 |
2 |
| KLY-R-3R20-100/5A 1.0级 |
3021900003 |
100 |
5 |
1 |
158*34*68.45 |
2 |
| KLY-R110-3000/5A 0.5级 |
3021900006 |
3000 |
5 |
0.5 |
175*175*35 |
3 |
| KLY-R-3R20-50/5A 1.0级 |
3021900001 |
50 |
5 |
1 |
158*35*68.4 |
2 |
| KLY-R140-4000/5A 0.5级 |
3021900007 |
4000 |
5 |
0.5 |
198*198*36 |
3 |
| KLY-R-3R20-50/5A 3.0级 |
3021900076 |
50 |
5 |
3 |
158*34*68.45 |
2 |

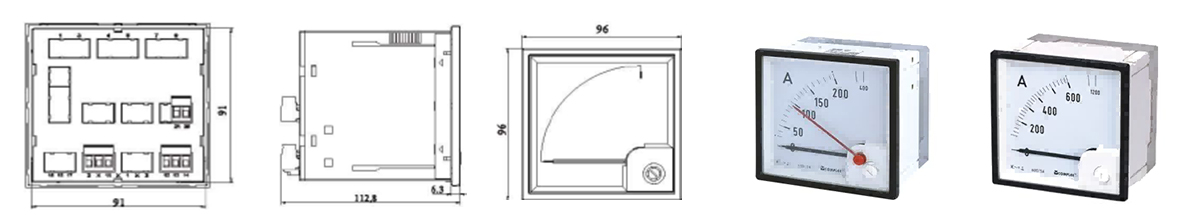

| Model |
PART NO. |
Measure Range (A) |
LxWxH(mm) |
L (mm) |
W (mm) |
H (mm) |
Weight (Kg) |
| KLY-T72A 5OV5A |
KLY-T72A |
0-50 |
96"96*112.8 |
112.8 |
96 |
96 |
0.2 |
| KLY-T72A 1005A |
KLY-T72A |
0-100 |
96'96'112.8 |
112.8 |
96 |
96 |
0.2 |
| KLY-T72A 150V5A |
KLY-T72A |
0-150 |
96"96 112.8 |
112.8 |
96 |
96 |
0.2 |
| KLY-T72A 200V5A |
KLY-T72A |
0-200 |
96'96 112.8 |
112.8 |
96 |
96 |
0.2 |
| KLY-T72A 3005A |
KLY-T72A |
0-300 |
96'96*112.84 |
112.8 |
96 |
96 |
0.2 |
| KLY-T9SA 400V5A |
KLY-T9SA |
0-400 |
96'96 112.8 |
112.8 |
96 |
96 |
0.2 |
| KLY-T96A 500V5A |
KLY-T9SA |
0-500 |
96"96 112.8 |
112.8 |
96 |
96 |
0.2 |
| KLY-T96A 600V5A |
KLY-T9SA |
0-800 |
96'96-112.8 |
112.8 |
96 |
96 |
0.2 |
Transformer、Voltage Meterr

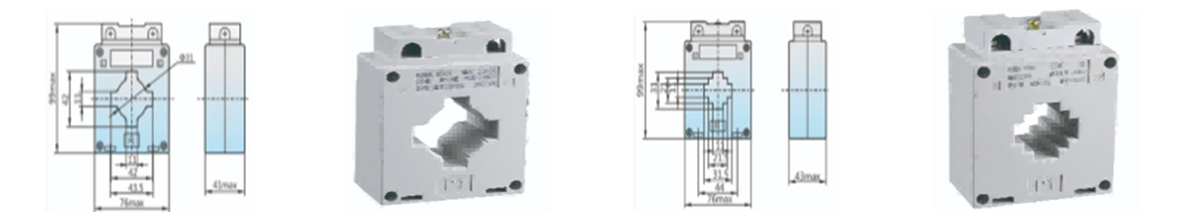

| Model |
PART NO. |
Primary Current(A) |
Secondary Current(A) |
Rated Burden Class |
LxWxH (mm) |
Weight (Kg) |
| BH-0.66 301200/5 |
3021900009 |
200 |
5 |
0.5 |
81*61*34 |
1 |
| BH-0.66 4011 300/5 |
3021900010 |
300 |
5 |
0.5 |
99*76*41 |
1 |
| BH-0.66 4011 400/5 |
3021900011 |
400 |
5 |
0.5 |
99*76*41 |
1 |
| BH-0.66 601 800/5 |
3021900012 |
800 |
5 |
1 |
1131*104*45 |
1 |
| BH-0.66 10011 200015 |
3021900014 |
2000 |
5 |
1 |
171*146*53 |
1.5 |
| BH-0.66 10011 1500/5 |
3021900013 |
1500 |
5 |
1 |
171*146*53 |
2 |
